Manual

Manual · The book

Forms & windows

The canvas, the objects, styles, tabs — and the events between them.

The form designer
The canvas and the running window are two drawings of one object.

The canvas

A form is designed where it runs: drag objects from the palette, move and resize them directly, align with the arrangement commands (alignment is arithmetic, so it is exact). Every object has a name — that name is how scripts reach it (form.nameField) — and a caption, which belongs to the object itself: a captioned field is simply a taller field, never two objects. The full catalogue is in The form objects.

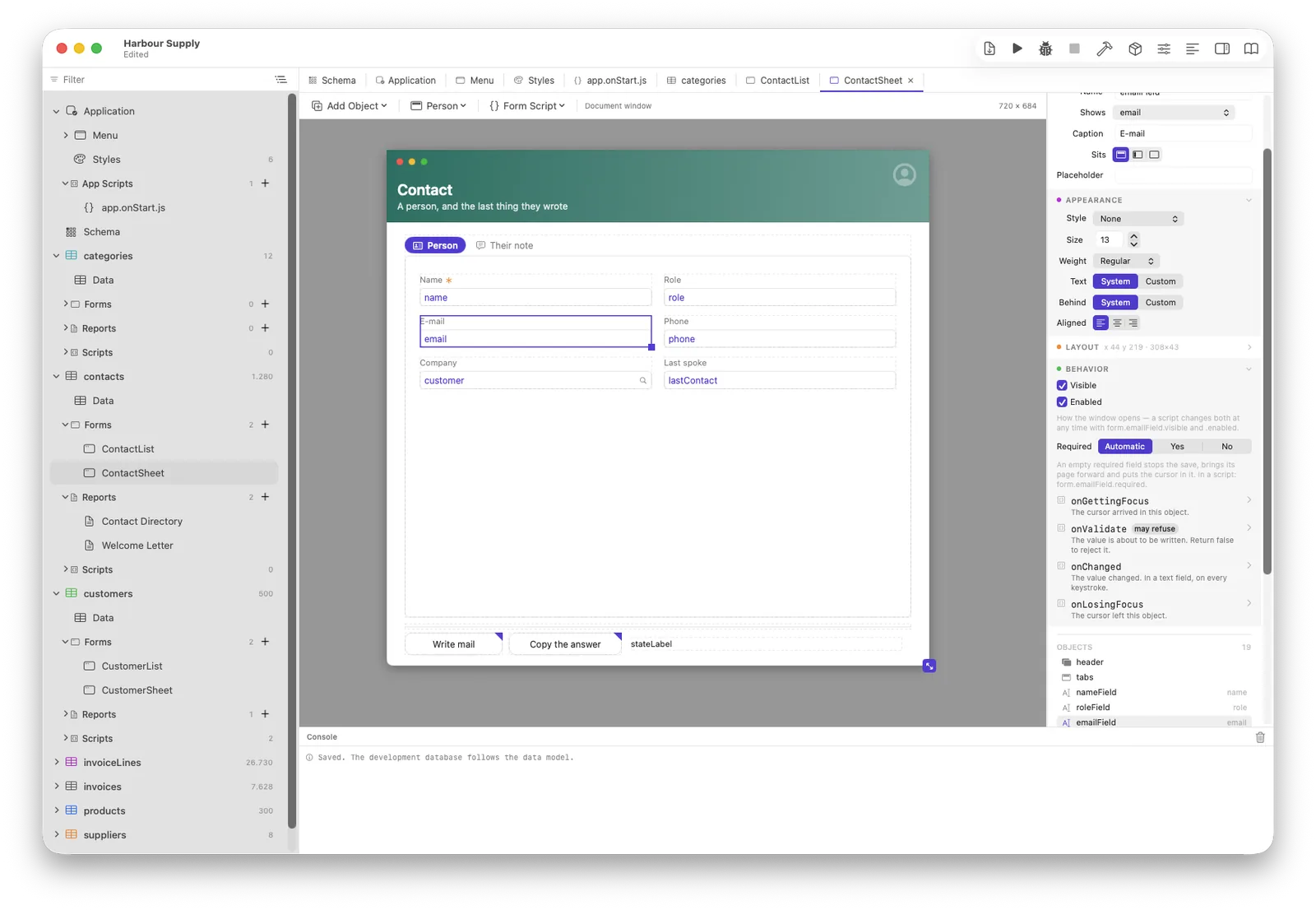

One field selected in the designer, with everything the inspector knows about it
One field, selected: what it shows, how it looks, where it sits, and every event it can fire — each with the sentence that says when it fires.

Styles

A style is the base, the object is the exception: an object looks like its style, the style falls back to the kind's default, and changing a named style restyles every object wearing it. At run time a script may override even the object (form.header.style = …) — that wins over everything, until the window closes.

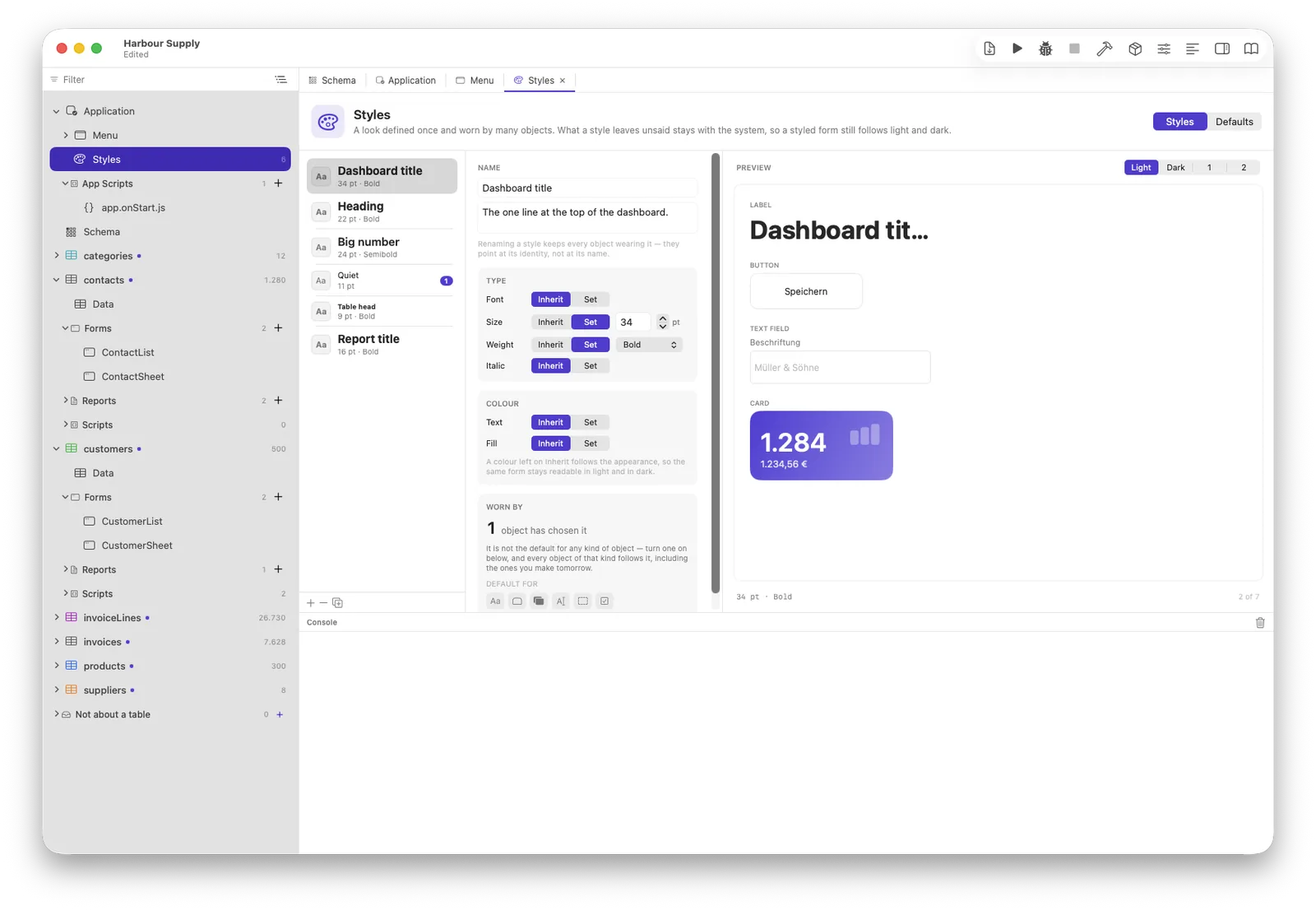

The Styles tab: the styles of a project, what each sets, and a live preview in light and dark
Every style says what it sets and what it leaves inherited — and what it leaves alone follows the system, which is how one form stays readable in light and in dark. The count beside it is how many objects wear it.

Bindings, and why there is no Save button

An object bound to a field is that field on screen. Leaving the field writes it — Model A: nothing is saved, because everything already is. Closing a window asks only when a record cannot be written; a form with required fields insists and then points — every missing field marked, the first one given the cursor, a popover saying what is wanted.

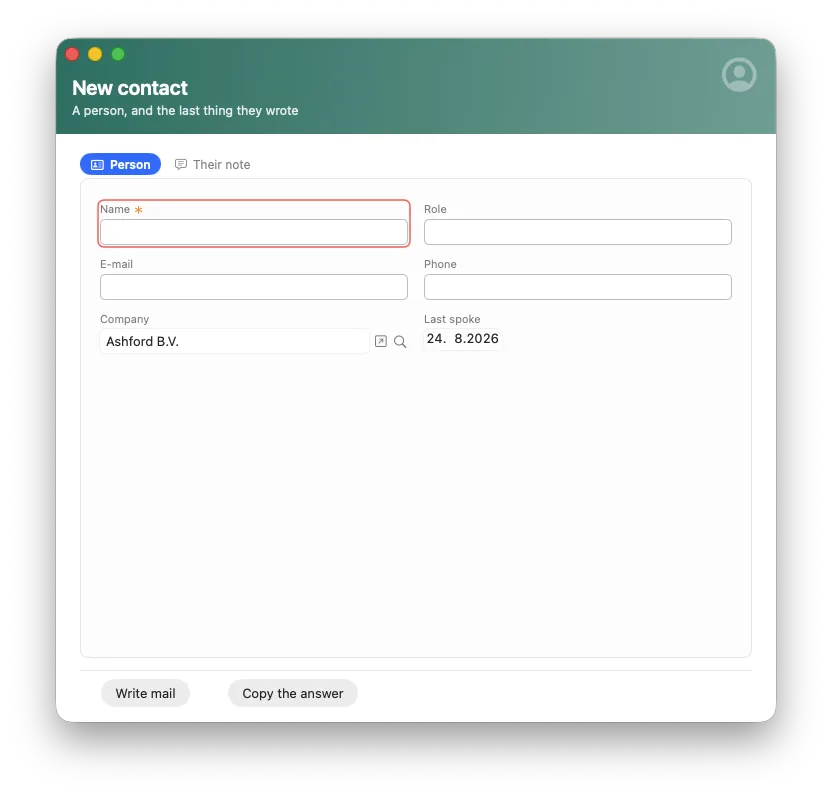

A sheet insisting: the missing field ringed red and given the cursor
Insisting means pointing: the field itself is ringed and marked, not a dialog saying that something, somewhere, is missing.

Windows and their kinds

A form opens as a document window or as a modal sheet (forms.open with { modal: true } waits for form.close(result)). One window can browse many records with form.load(record). A window coming back to the front re-reads what it shows if anything was written meanwhile — a list never shows stale rows because a sheet above it saved.

Tabs and the Tab key

Pages of a tab strip own their objects by name — membership is stated, not derived from geometry. The Tab key follows the reading order you set, because a guessed order is right until the day it is not.

Events

Every object can carry scripts for its events — onClick, onChanged, onValidate, the list's row events — and the form itself has onOpen, onClose, onActivated and friends. Every event opens with a worked example as a comment, so an empty script is never an empty page. Events run one turn after the click, so the window has settled when your code runs; the few that may veto (closing, validating) are deliberately on the other side of that line. Details in Scripts & events.
